Engineering:Toyota 4Runner

From HandWiki
Short description: Sport utility vehicle manufactured by Toyota
Toyota 4Runner
2019 Toyota 4Runner SR5 4.0L front 6.16.19.jpg
2019 Toyota 4Runner SR5
Overview
ManufacturerToyota
Also calledToyota Hilux Surf (Japan, 1983–2009)
ProductionOctober 1983 – present
Model years1984–present (US)
Body and chassis
Class
  • Compact SUV (1984–1995)
  • Mid-size SUV (1995–present)
Layout
  • Front-engine, rear-wheel-drive
  • Front-engine, four-wheel-drive
Chronology
Successor

The Toyota 4Runner is an SUV manufactured by the Japanese automaker Toyota and marketed globally since 1984, across five generations. In Japan, it was marketed as the Toyota Hilux Surf (Japanese: トヨタ・ハイラックスサーフ, Hepburn: Toyota Hairakkususāfu) and was withdrawn from the market in 2009. The original 4Runner was a compact SUV and little more than a Toyota Hilux pickup truck with a fiberglass shell over the bed, but the model has since undergone significant independent development into a cross between a compact and a mid-size SUV. All 4Runners have been built in Japan at Toyota's plant in Tahara, Aichi, or at the Hino Motors (a Toyota subsidiary) plant in Hamura.

The name "4Runner" was created by copywriter Robert Nathan with the Saatchi & Saatchi advertising company as a play on the term "forerunner". The agency held contests to invent new names for Toyota's forthcoming vehicles. According to Toyota, the "4" described the vehicle's 4-wheel drive system while "Runner" was a reference to its all-terrain capabilities and how it could "run" off road.[1]

For some markets, the Hilux Surf was replaced in 2005 by the similar Fortuner, which is based on the Hilux platform.

(As of 2021), the 4Runner is marketed in the Bahamas, Bolivia, Canada, Chile, Colombia, Costa Rica, El Salvador, Guatemala, Panama, Peru, the United States and Venezuela.

The 4Runner came in at number five in a 2019 study by iSeeCars.com ranking the longest-lasting vehicles in the US. The 4Runner had 3.9 percent of vehicles over 200,000 miles (320,000 km), according to the study.[2]

Predecessor: Toyota Trekker (N30; 1981–1983)

Toyota Trekker
Overview
Manufacturer
Production1981–1983
AssemblyUnited States: Forest City, Iowa (Winnebago)
Body and chassis
Body style2-door pickup
RelatedToyota Hilux/Pickup (N30)
Powertrain
Engine
  • Gasoline:
  • 2.4 L 22R I4 (RN38)
Power output96–100 hp (72–75 kW; 97–101 PS)[3]
Transmission5-speed L52 manual
Dimensions
Wheelbase102.2 in (2,595 mm)[3]
Length170.1 in (4,320 mm)[3]
Width66.5 in (1,690 mm)[3]
Height65.9 in (1,675 mm)[3]
|uk|Kerb|Curb}} weight3,120 lb (1,415 kg)[3]

Toyota had partnered with third-party recreational vehicle manufacturers at least as early as 1973, when a Chinook Mobilodge-built popup truck camper was paired with the longbed Toyota truck chassis and sold as a less expensive, more economical alternative to larger motorhomes.[4] In the Chinook conversion, the bed and rear wall of the cab were removed and a fiberglass popup shell was added, allowing occupants to walk through from the motorhome section to the cab.[5]

1974 Hilux/Chinook

The Trekker was a similar "walk-through" third-party conversion of the short-bed Toyota Hilux truck, built by Winnebago Industries from 1981 to 1983. Winnebago removed the rear wall and added a bench seat in the bed, protecting these occupants by a permanently-fixed fiberglass shell;[6] in concept, it was similar to the Chevrolet K5 Blazer. The Trekker competed with similar third-party limited production Toyota conversions including the Breaker-Breaker and Trailblazer.[7] The Trekker was discontinued in 1984 once Toyota started producing and selling the 4Runner SUV; these third-party conversions had in essence acted as marketing test vehicles for the 4Runner.[8][9]

Production

After the Land Cruiser FJ40 was discontinued, Jack Safro, who operated a Toyota dealer in Brookfield, Wisconsin, approached Winnebago with the idea to convert the Hilux into a four-passenger vehicle as a potential replacement.[10] The resulting Trekker was produced from early 1981 through 1983. In total, approximately 1200–1500 Trekkers were built and sold in the United States, with many shipped to Colorado.[11] An additional unknown number of Trekker kits, likely less than 200, were shipped to Canada to be installed on Canadian trucks at the dealerships. 20 to 30 of the Trekker kits were sold and shipped to Saudi Arabia for installation.[11]

Toyota shipped all trucks from Japan as cab and chassis in order to avoid the 25% assembled truck customs tax. All Trekkers were built on the short wheelbase Hilux chassis. The trucks destined for production as Trekkers were shipped to the dealership handling the national distribution of the Trekker. From there they went to Winnebago to have the Trekker conversion installed, returned after completion to the dealership for national distribution. Most of the Trekker conversions sold went to the west coast of the United States.

Specifications

The Trekker conversion involved removing the bed and rear cab wall from the donor truck, then replacing them with a fiberglass tub, bed sides, a non-removable canopy and rear hatch.[12] The kit included a folding rear seat that could be folded forward to lay flat and add cargo space to the back. There was no tailgate on the Trekkers. The factory Toyota vinyl cab headliner was replaced and matched to the custom rear canopy headliner. Suggested retail price in 1981 was US$13,000 (equivalent to $37,000 in 2019).[12]

All Trekkers were given the SR5 trim designation by both Winnebago and Toyota, regardless of the actual VIN denotation. Originally there were to be Deluxe (Model 7141) and Deluxe SR5 (Model 7147) versions of the Trekker; the SR5 was to be equipped with a 5-speed manual transmission, vented canopy windows, and a more finished rear interior than the Deluxe, which was to be equipped with a 4-speed manual and fixed windows.[3][12] Regardless of trim level, all 1981 Trekkers had vented canopy windows. Non-vented canopy windows were installed on the Trekker for the 1982 model year (again, regardless of trim level) because the forward-facing vent windows on the 1981 Trekkers developed leaks.

As tested by Truckin' in 1981, the observed fuel consumption was 19.3 mpg‑US (12.2 L/100 km) in combined (city and highway) driving, dropping to 17.4 mpg‑US (13.5 L/100 km) with off-road use. The enclosed cargo area was 60 cu ft (1.7 m3) with the rear bench folded.[12]

First generation (N60; 1983)

First generation

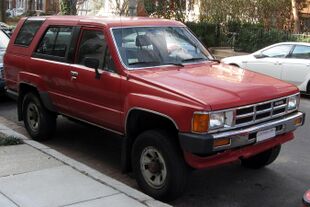

1st Toyota 4Runner -- 01-07-2012.jpg
Overview
Also called
  • Toyota Hilux Surf (Japan)
  • Toyota Hilux 4Runner
ProductionOctober 1983[13] – August 1989
Model years1984–1989 (US)
AssemblyJapan: Tahara, Aichi
Body and chassis
ClassCompact SUV
Body style3-door SUV
RelatedToyota Hilux/Pickup (N60)
Powertrain
Engine
  • Gasoline:
  • 2.0 L 3Y-EU I4
  • 2.2 L 4Y-C I4
  • 2.4 L 22R I4
  • 2.4 L 22R-E I4
  • 2.4 L 22R-TE turbo I4
  • 3.0 L 3VZ-E V6
  • Diesel:
  • 2.4 L 2L I4 (1984–1989)
  • 2.4 L 2L-T turbo I4 (1985–1989)
Transmission
Dimensions
Wheelbase103.0 in (2,615 mm)
Length174.6 in (4,435 mm)
Width66.5 in (1,690 mm)
Height66.1 in (1,680 mm)
|uk|Kerb|Curb}} weight3,520–3,760 lb (1,595–1,705 kg)

For the first generation N60 series Hilux Surf and export specification 4Runner introduced in 1983, Toyota, instead of developing an entirely new model, modified the existing Hilux (N50/N60/N70) with short-bed pickup body. The Hilux had undergone a major redesign in 1983 for the 1984 model year. Compared to the pickup, the Surf/4Runner changes included the removal of the panel with integrated rear window from behind the front seats, and adding rear seats, a roll bar, and a removable fiberglass canopy.[14][15]

The concept was borrowed from both the second generation Ford Bronco, and the Chevrolet K5 Blazer, which were both based on existing short-bed pickup trucks with the addition of removable fiberglass shells over the rear sections and bench seats installed in the back. Like the Bronco and the Blazer, the Hilux Surf/4Runner also removed the rear wall behind the front seats in the corresponding pickup trucks. In that sense, all three vehicles were more modified than simply adding a fiberglass shell to conventional pickup trucks.[16]:88

1987–1989 Toyota 4Runner SR5 (Australia)
1987–1989 Toyota Hilux Surf
1985 Toyota 4Runner with the rear canopy removed

Thus, the first generation is nearly mechanically identical to the Toyota Hilux 4×4.[14][17] All first generation 4Runners had two doors and were indistinguishable from the pickups from the dashboard forward. Nearly all changes were to the body behind the B-pillar; in fact, because the rear springs were not upgraded to bear the additional weight from the rear seats and fiberglass top, early models tended to suffer from a sagging rear suspension.

History

In North America, they were sold for the 1984½ model year starting from May 1984. For this first year (March to July 1984 production), all models were equipped with black or white fiberglass tops. The base (DX) model omitted the rear seat.[18]:205 An SR5 trim package was offered that upgraded the interior: additional gauges, better fabrics, and a rear seat were standard with the package.[19] All 1984½ models were equipped with the carbureted 2.4 L 22R I4 engine, paired with a 5-speed manual transmission; all were available with a four-wheel-drive system that drove the front wheels through a solid front axle with manual locking hubs.[19]

Model year 1985 (which began production in August 1984) saw the arrival of the electronically fuel-injected 2.4 L 22R-E (and 22R-EC with California emissions controls). This increased the power output from 96 hp (72 kW) for the 22R[18]:204 to 116 hp (87 kW) for the 22R-E,[19] though the carbureted engine remained available until 1988. Additionally, rear seats were available in all 1985 4Runner trim levels, not just the more upscale SR5.

For model year 1986, the Surf/4Runner underwent a major front suspension design change as it was changed from a solid front axle to the Hi-Trac independent front suspension.[20] Track width was also increased by three inches. These changes made the trucks more comfortable on-road, and improved stability and handling. The new suspension also increased the space in the engine compartment (necessary to fit larger engines, such as the V6 introduced in 1987) but arguably decreased the truck's off-road capabilities. The North American specification Toyota Pickup also adopted this new suspension,[21] but the regular Hilux for other markets at this point retained the more rugged and capable, if less refined, solid axle configuration. With the 1986 update, the Surf/4Runner grille changed from the three segment type to the two segment grille. Tops were color-matched on blue, red and some gold models, while other body colors were still sold with black or white tops.

A turbocharged version of the 22R-E engine (the 22R-TE) was also introduced in the 1986 model year,[20] increasing output to 135 hp (101 kW),[22]:78 although this engine is significantly rarer than the base 22R-E. With the 22R-TE, the 4Runner was rated at 17 mpg‑US (14 L/100 km) on the city driving cycle; testing showed real-world economy was 14.5 mpg‑US (16.2 L/100 km).[22]:78 It appears that all turbocharged 4Runner models sold in the US were equipped with an automatic transmission, though a five-speed manual could still be ordered in the turbocharged pickups. Most turbocharged 4Runners were equipped with the SR5 package, and all turbo trucks had as standard a heavier rear differential later used in the V6 model. Low-option models had a small light in the gauge cluster to indicate turbo boost, while more plush vehicles were equipped with an all-digital gauge cluster that included a boost gauge.[22]:76 Turbocharged and naturally aspirated 2.4 L 2L-T and 2L diesel engines were also available in the pickups at this time as well,[21][23]:1-9 but it appears that no diesel-powered 4Runners were imported to the United States.

During 1984 to 1986 many 4Runners were imported to the US without rear seats. With only two seats the vehicle could be classified as a truck (rather than a sport vehicle) and could skirt the higher customs duties placed upon sport and pleasure vehicles.[clarification needed] Most had aftermarket seats and seat belts added by North American dealers after they were imported.

4Runner (N60) drivetrain options
Engine
 84 85 86 87 88 89
22R I4 Green check.svg Yes Dark Red x.svg No Dark Red x.svg No Dark Red x.svg No Dark Red x.svg No Dark Red x.svg No
22R-E I4 Dark Red x.svg No Green check.svg Yes Green check.svg Yes Green check.svg Yes Green check.svg Yes Green check.svg Yes
22R-TE I4 turbo Dark Red x.svg No Dark Red x.svg No Green check.svg Yes Green check.svg Yes Dark Red x.svg No Dark Red x.svg No
3VZ-E V6 Dark Red x.svg No Dark Red x.svg No Dark Red x.svg No Dark Red x.svg No Green check.svg Yes Green check.svg Yes
Transmissions 5M Green check.svg Yes
4A Dark Red x.svg No

No changes were made for the 1987 model year.[24] In 1988, the 22R-TE engine was replaced by an optional 3.0 L V6 engine, the 145 hp (108 kW) 3VZ-E,[20] available with the SR5 trim package;[25]:164 the standard engine remained the 22R-E. By this time, the SR5 package added automatic locking front hubs for both the I4 and V6 engines.[26]:160 The V6 engine was significantly larger and more powerful although not as reliable as the original 4-cylinder offering. Trucks sold with the V6 engine were equipped with the same heavy duty rear differential that was used in the turbocharged trucks, as well as a completely new transmission and transfer case; the transfer case was chain driven, although considered less rugged, created less cab noise than the old gear-driven unit used behind the four-cylinder engine.

In New Zealand, the 4Runner was equipped with the 3Y 2.0 L I4 engine instead, followed more rarely by the 4Y 2.2 L gasoline engine in later versions. This was a decision by Toyota New Zealand to reduce parts required to be stocked by dealers as no other Toyotas sold in New Zealand at the time utilised the R series engines. The 3Y/4Y also were equipped, albeit rarely, in the Japanese domestic market pickups and never were used in the US market.

Small cosmetic and option changes were made in 1988 for the 1989 model year, but the model was left largely untouched in anticipation of the replacement model then undergoing final development.[27]:116

Second generation (N120/N130; 1989)

Second generation
90-91 Toyota 4Runner.jpg
Overview
Also called
  • Toyota Hilux Surf (Japan)
  • Toyota Hilux SW4 (Brazil)
  • Jinhui 4Runner (China, JV)
ProductionAugust 1989 – August 1995
Model years1990–1995 (US)
Assembly
  • Japan: Tahara, Aichi
  • China: Zhuhai, Guangdong
Body and chassis
ClassCompact SUV
Body style
  • 3-door SUV
  • 5-door SUV
RelatedToyota Hilux/Pickup (N80/N90/N100/N110)
Powertrain
Engine
  • Gasoline:
  • 2.0 L 3Y I4
  • 2.2 L 4Y I4
  • 2.4 L 22R-E I4
  • 3.0 L 3VZ-E V6
  • Diesel:
  • 2.4 L 2L-TE turbo I4
  • 2.4 L 2L-T(II) turbo I4
  • 2.8 L 3L I4
  • 3.0 L 1KZ-T turbo I4
  • 3.0 L 1KZ-TE turbo I4
Transmission
  • 5-speed manual
  • 4-speed A340H automatic
Dimensions
Wheelbase103.3 in (2,625 mm)
Length176.0–176.8 in (4,470–4,490 mm)
Width66.5 in (1,690 mm)
Height66.1 in (1,680 mm)
|uk|Kerb|Curb}} weight3,760 lb (1,705 kg)

Toyota released a second generation of Hilux Surf and 4Runner in 1989 for the 1990 model year. Known as the N120/N130 series, these models continued to be based on the Hilux pickup. However, the second-generation Surf/4Runner represented a fundamental departure from the first generation model: Instead of an enhanced pickup truck with fiberglass cap, the new 4Runners featured a freshly designed, full steel integrated body mounted on the existing frame. However, the 4Runner's appearance remained virtually identical to the Hilux from the B-pillars forward, and the powertrain was shared with the Hilux.

Chassis and body

The 4Runner and corresponding Hilux shared similar body-on-frame construction; however, instead of the Hotchkiss drive design with leaf springs used on the Hilux and first-generation 4Runner, the rear suspension of the second-generation 4Runner was a multilink coil spring design locating a solid axle,[28] which unfortunately proved to be just as prone to sagging as the leaf springs on the rear of the previous models.

1990–1991 Toyota 4Runner V6 with two-door bodywork (VZN130; US)
1992–1995 Toyota 4Runner (US; facelift)
1991–1996 Toyota 4Runner (LN130R; Australia)
Toyota Hilux Surf (KZN130G; Japan)

Nearly all second generation 4Runners were four-door models; however, two-door models also were produced from launch in 1989 to May 1993. These models are similar to the four-door models of the time in that the bodies were formed as a single unit, instead of the fiberglass tops used in the first generation 4Runners.[29]:42 Two-door cars of the second generation are extremely rare, and they were priced higher than the four-door model due to the chicken tax applied to light-duty imported trucks.[30] US sales of the two-door body ended in August 1992, but it continued to be available in the Canadian market through 1993, and Japan until May 1993.

Most competing full-body SUVs produced at the time (e.g. Nissan Pathfinder, Ford Explorer) featured tailgates that opened upward with the glass closed. In contrast, the second generation 4Runner carried over the retractable-glass tailgate from the first generation. Opening these tailgates requires first retracting the rear window into the tailgate and then lowering the tailgate much like as on a pickup truck.

In 1991 for the 1992 model year, the 4Runner received minor cosmetic updates, including one-piece front bumpers and modular headlamps instead of the increasingly outdated rectangular sealed beams. This facelift distanced the 4Runner somewhat from the Hilux pickups which did not receive the same cosmetic changes. At this time a wide-body version was introduced featuring extended wheel arch flares along with wider wheels and tires.

Additional cosmetic changes occurred between 1993 and 1995, the last year of the second generation.

Mechanical

Because the drive train was still developed from the same source, the available engines and drivetrains were identical to the corresponding Hilux. The new 4Runner used the independent front suspension that had been developed on the previous generation. The older style gear driven transfer case was phased out on the V6 models and they now had a chain driven case. The older gear driven case was retained on the 4-cylinder models.

In the United States, the 4Runner carried over the same engine options from the previous generation: the 22R-E 2.4 L I4 and 3VZ-E 3.0 L V6.[30] With the V6 and four-speed automatic transmission, the US EPA rated the 4Runner at 15 mpg‑US (16 L/100 km) on the city driving cycle; in testing, 14.28 mpg‑US (16.47 L/100 km) was observed.[31]:59

The Hilux Surf version for the Japanese market was also available with a range of diesel engines, including a 2.4 L turbodiesel 2L-TE I4 up to 1993, followed by a 3.0 L turbodiesel 1KZ-TE I4. Small numbers were also made with a normally aspirated 2.8 L diesel 3L I4, a 2.0 L 3Y I4 naturally aspirated gasoline engine, and 2.4 L 22R-E I4 gasoline engine.[32] The majority of gasoline versions of the Hilux Surf received the 3VZ-E 3.0 L V6. Various trim levels were offered in Japan ranging from the base model 'SSR' through 'SSR Ltd', 'SSR-V' 'SSR-X' and 'SSR-X Ltd' to the range topping 'SSR-G'.

Safety

The first and second generation 4Runners were both targeted as unsafe SUVs. 1980s and early-1990s crash regulations in the United States were not very strict for light trucks, and all early model 4Runners were fitted with doors that offered little protection in the event of a side collision. In most areas, there was little more than two pieces of sheet-metal and the window to keep incoming vehicles from impacting passengers. Later, more strict crash regulations mandated doors that offered as much protection as passenger doors. In the United States, the 1994 and 1995 model years added side-impact beams in the doors.

The crash test rating for the second generation 4Runner was one to two stars (out of five) for the driver's side in a frontal collision while the passenger side received a three to four-star rating.[33][34][35]

The rear wheels were equipped with an anti-lock braking system as standard equipment for the SR5 V6 starting from the 1990 model year[36]:60[37]:60–61[38]:74–75[39]:82–83[40]:90–91[41] and four-wheel anti-lock brakes were an option.[42]:96

Third generation (N180; 1995)

Third generation
1996-1998 Toyota 4Runner .jpg
Overview
Also called
  • Toyota Hilux Surf (Japan)
  • Toyota Hilux SW4 (Argentina and Brazil)
  • Zhongxing Admiral
ProductionAugust 1995 – August 2002
Model years1996–2002 (US)
AssemblyJapan: Tahara, Aichi; Hamura, Tokyo (Hino)
Body and chassis
ClassMid-size SUV
Body style5-door SUV
Related
  • Toyota Land Cruiser Prado (J90)
  • Toyota Tacoma (N140/N150/N160/N170/N190)
  • Toyota Hilux (N140/N150/N160/N170)
  • Toyota Hilux Sport Rider
Powertrain
Engine
  • Gasoline:
  • 2.7 L 3RZ-FE I4 (RZN180/185; Japan from 1995–2002, North America from 1995–2000)
  • 3.4 L 5VZ-FE V6 (VZN180/185; 1995–2002)
  • Diesel:
  • 3.0 L 1KZ-TE turbo I4 (KZN185; Japan, 1995–2000)
  • 3.0 L 1KD-FTV D-4D turbo I4 (KDN185; Japan, 2000–2002)
Transmission
  • 5-speed manual
  • 4-speed automatic
Dimensions
Wheelbase105.3 in (2,675 mm)[43]
Length178.7–190.9 in (4,540–4,850 mm)[43]
Width66.5–70.9 in (1,690–1,800 mm)[43]
Height68.9–71.1 in (1,750–1,805 mm)[43]
|uk|Kerb|Curb}} weight3,616–3,902 lb (1,640–1,770 kg)[43]

Developed under chief Masaaki Ishiko from 1990 to 1995 under the project code 185T, in late 1995 (for the 1996 model year) a significant redesign of the 4Runner was introduced, with an all-new body shell on an all-new chassis. It shared many parts, including engine and transmission, with the new Tacoma, and sharing its chassis with the Toyota Land Cruiser Prado (J90). Despite moving upmarket with the rest of the mid-size SUV market, the new 4Runner differentiated itself by retaining the rugged off-road character its competitors were sacrificing for highway comfort.[44]

The third generation 4Runner featured new engines shared with the first generation Toyota Tacoma pickup trucks:

  • 2.7L 3RZ-FE I4 replacing the previous 2.4L 22R-E I4; 150 hp (110 kW) max horsepower at 4800 rpm (an increase of 38 hp (28 kW)), and 177 lb⋅ft (240 N⋅m) max torque at 4000 rpm (an increase of 35 lb⋅ft (47 N⋅m));
  • 3.4L 5VZ-FE V6 replacing the previous 3.0L 3VZ-E V6; 183 hp (136 kW) horsepower at 4800 rpm (an increase of 33 hp (25 kW)), and 217 lb⋅ft (294 N⋅m) max torque at 3600 rpm (an increase of 37 lb⋅ft (50 N⋅m)).
Original placard describing the operation of the Toyota rear electronic locker in a 1997 Toyota 4Runner
1998–2000 Toyota Hilux Surf Sports Runner (Japan)
2001–2002 Toyota 4Runner (USA)

In 1996, the 4Runner was dropped from sale in the UK, to be replaced by the Toyota Land Cruiser Prado, which was badged as the Toyota Land Cruiser Colorado.

Airbags for both the driver and passenger were added with the introduction of the third-generation 4Runner in 1995 for the 1996 model year.[citation needed]

Significant changes from the second generation models include a larger body on a longer wheelbase, increased interior space, increased cargo space, dual airbags, ABS, lift-up tailgate, coil-spring suspension all around, rack and pinion steering, and aerodynamic contour designed glass headlights. Additionally, Hilux Surf versions immediately moved to 16-inch wheels and gained a center differential, enabling the use of four-wheel drive on hard surfaces without complication for the first time. The prior system was retained to give on-the-fly shifting between rear- and four-wheel drive as before. The new 4Runner was also available with a factory installed selectable electric locker in the rear differential, a first for the 4Runner but available since 1993 in the Toyota Land Cruiser.

The 1997 model year received a few minor updates, including the addition of a color keyed cargo cover.

The 1998 model year remained largely unchanged, save for a few changes in the electronics. More ergonomic switch control panels and a newly designed 4 spoke steering wheel, which also necessitated a redesign of the airbag system.

For the 1999 model year, there were both major cosmetic and interior enhancements. A new "fat lip" bumper was designed to allow for an extended crush zone on the front of the frame, as well as new multi-parabola style headlights, projector style fog lamps, and updated side marker lights and front turn signals. Vehicles with "Limited" and "Highlander" (later called "Sport Edition") trim received color-keyed running boards, front and rear bumpers, mud flaps and flares. The ergonomics of the interior was completely changed, moving all the controls to the center of the dash for the rear window, and defrost, it also received a new instrument panel with a digital odometer. The Limited trucks also received a brand-new electronic temp control, and upgraded stereo. The "multi-mode" transfer case system became available as an option for 4WD 4Runners for 1999, giving the option of AWD operation.

The 2000 model year would be the final year the 5-speed manual would be offered, leaving the 4-speed automatic as the sole transmission option. This would mark the last time any 4Runner would be offered with a manual transmission.

For the 2001 model year, the 4-cylinder option was discontinued in North America. It also received new transparent tail lights and new front grille design. The wheels were changed to a five-spoke design rim. Limited models received newly designed five spoke wheels as well, however different from SR5 and base model. Also included was a new, sleeker side view mirror design. SR5 and base model 4Runners also have redesigned climate control units utilizing 3 knobs and 2 buttons, contrary to the 1999 model's 2 sliders and 2 knobs. 2001 models were equipped with Vehicle Stability Control standard, and 4WD models came standard with the "multi-mode" transfer case. The optional "e-locker" locking rear differential was dropped in 2001. This was replaced by the new advanced traction control system that offered similar performance by applying the individual brakes to direct power to whichever tires needed the most traction.

The 2002 model year can be distinguished from the rear by their chromed lift gate exterior trim that encompasses the license plate.

Fourth generation (N210; 2002)

Fourth generation
03-05 Toyota 4Runner SR5.jpg
Overview
Also calledToyota Hilux Surf (Japan)
ProductionAugust 2002 – August 2009
Model years2003–2009 (US)
AssemblyJapan: Tahara, Aichi; Hamura, Tokyo (Hino)
Body and chassis
ClassMid-size SUV
Body style5-door SUV
Related
  • Toyota Land Cruiser Prado/Lexus GX 470 (J120)
  • Toyota FJ Cruiser
  • Toyota Tacoma (N220/N240/N250/N260/N270)
Powertrain
Engine
  • Gasoline:
  • 2.7 L 3RZ-FE I4 (RZN210/215; Japan, 2002–2004)
  • 2.7 L 2TR-FE I4 (TRN210/215; Japan, 2004–2009)
  • 3.4 L 5VZ-FE V6 (VZN210/215; Japan, 2002–2005)
  • 4.0 L 1GR-FE V6 (GRN210/215; North America from 2002–2009, Japan from 2005–2009)
  • 4.7 L 2UZ-FE V8 (UZN210/215; North America, 2002–2009)
  • Diesel:
  • 3.0 L 1KD-FTV D-4D turbo I4 (KDN215; Japan, 2002–2005)
Transmission
  • 4-speed A3xx automatic
  • 5-speed A7xx automatic
Dimensions
Wheelbase109.8 in (2,790 mm)
Length189–189.2 in (4,800–4,805 mm)
Width73.8–75.2 in (1,875–1,910 mm)
Height68.9–71.6 in (1,750–1,820 mm)
|uk|Kerb|Curb}} weight4,280 lb (1,940 kg)

The fourth-generation 4Runner incorporated serious changes to the chassis and body of the vehicle, but was targeted at approximately the same demographics as the third generation. Based on the Land Cruiser Prado 120 series, the new 4Runner retained the same basic exterior styling themes, and was still marketed as a mid-size semi-luxury SUV with off-road capabilities. Available trims were the SR5, Sport Edition, and Limited models. An all-new LEV certified 4.0 L 1GR-FE V6 which produces 245 hp (183 kW) and 282 lb⋅ft (382 N⋅m) of torque is standard, but for the first time, a V8 became available, the ULEV certified 4.7 L 2UZ-FE engine which in the US produced 235 hp (175 kW) and 320 lb⋅ft (434 N⋅m). In 2004, for the 2005 model year, the addition of VVT-i increased output to 268 hp (200 kW) and 315 lb⋅ft (427 N⋅m). Fuel economy is estimated at 17 mpg city, 20 mpg highway for the V6 and 15/19 mpg for the V8. Towing capacity is 5,000 lb (2,300 kg) on V6 models and 7,300 lb (3,300 kg) on RWD V8 models (7000 pounds w/4WD). The 4Runner first entered dealer showrooms in October 2002 for the 2003 model year.[45] Three trims levels were offered, SR5, Sport Edition, and Limited. When it was first introduced the SR5 and Sport Edition models used gray plastic cladding and bumpers. Sport models also featured a non-functional hood scoop.

Toyota Hilux Surf SSR-X

The front suspension used a double wishbone while the rear is a solid rear axle type. The 4Runner continued to use a body on frame construction design and a solid rear axle for strength and durability compromising interior room and on-road handling. Toyota's other mid-size SUV, the Highlander is a crossover which is not designed for off-roading. The optional 4WD systems were full-time on V8 models while "Multi-Mode" or part-time on V6 models, both systems used a lockable Torsen center differential. A new suspension system, X-Relative Absorber System (X-REAS), became standard on the Sport Edition and optional for SR5 and Limited models, a rear auto-leveling height adjustable air suspension is sometimes included with this option on Limited models. The X-REAS system links the dampers diagonally by means of hydraulic hoses and fluid using a mechanical center valve which reduces body roll during hard cornering. All 4runners were equipped with skid plates for the engine, transfer case, and fuel tank to prevent damage during off-roading. The Hill-Start Assist Control (HAC) system prevents the 4runner from rolling backwards on inclines and a Downhill Assist Control (DAC, 4WD only) modulates the brakes and throttle automatically without driver inputs for smooth hill descents at very low speeds, both electronic aids are standard on 4WD models.

Major standard features included a tilt and telescoping steering wheel, remote keyless entry, single zone automatic climate control, power driver's lumbar support, power rear tailgate window, and on V8 models a tow hitch receiver bolted directly to the rear frame crossmember. Options included HomeLink, an electrochromic auto-dimming rearview mirror, power moonroof, third row seating, a DVD-based navigation system (loses in-dash CD changer), a 10-speaker JBL Synthesis stereo, and rear seat audio. An optional backup camera system on Limited models used two cameras mounted on the interiors D-pillars to give a wider view when backing up. Some trim levels get two mirrors mounted on the interior D-pillars just inside the rear hatch.

In 2009 with the end of this generation, Toyota Japan ceased production of the Hilux Surf, leaving only the 4Runner available in the subsequent model series.

Safety

All 4Runners came with Toyota's Star Safety System which includes anti-lock brakes, electronic brakeforce distribution, brake assist, traction control and Vehicle Stability Control. Side torso airbags for the front rows as well as side curtain airbags for the front and rear rows were optional on 2003–2007 models and became standard on 2008 models.

The Insurance Institute for Highway Safety rated the 4Runner as "Good" overall in the frontal offset crash test, "Good" overall in the side impact test on vehicles with side airbags, and the 4Runner received a "Poor" rating for rear impact protection.[46] An IIHS report published in April 2007 shows the 4Runner has one of the lowest death rates for all vehicles on the road at only 13 deaths per million registered vehicle years for the 2003 and 2004 model years. Only the Chevrolet Astro, Infiniti G35, and BMW 7 series had lower death rates.[47]

US NHTSA crash test ratings (2003 model year):[48]
Frontal Driver:
Frontal Passenger:
Side Driver:
Side Rear Passenger:
Rollover:

Yearly changes

  • In early 2003, Toyota added an optional Appearance Package for the SR5 model that included color-keyed cladding, bumpers, and liftgate trim. In April 2003, Toyota made the Appearance Package, along with the previously optional fog lamps, running boards, and 16-inch aluminum wheels, standard on the SR5. The Sport Edition also added black running boards and color-keyed trim, replacing the grey cladding and silver-painted grille, door handles and liftgate trim.[49][50][51][52]
  • In late 2003 (for the 2004 model year), a tire-pressure monitoring system was added as standard equipment. A third row seat became optional on the SR5 and Limited models.
  • In 2004 (for the 2005 model year), enhancements were brought to the optional V8 engine and a 5-speed automatic was made standard on the V6 model. Slight changes were made to the exterior including color-keyed bumper trim (replacing the silver painted trim on all colors except Dorado Gold) on the SR5 and Limited; a chrome grille on the SR5; a black roof-rack and running boards (replacing silver) on the Limited; and a redesigned rear spoiler. A Salsa Red Pearl scheme was also introduced for all trim levels, although a similar color scheme was available for third generation models.
Facelifted 4Runner SR5 4WD (US)
  • 2005 (for the 2006 model year) marked the fourth generation's mid-cycle refresh. The changes included revised front and rear bumpers; a reworked grille; new projector-beam headlamps and LED tail lamps; additional chrome trim on the SR5 model; and a smoked-chrome grille with tubular roof-rack and step bars on the Sport Edition. The revised front bumper features circular fog lights and a relocation of the turn-signals to the headlamp assembly. The redesigned bumper eliminates the rear bumper reflectors. MP3 playback capability and an auxiliary input jack were added to all audio systems. In addition, the Limited model was further differentiated from the other trim levels with the addition of unique 18" wheels and a seat memory system. Shadow Mica was added as a color option. Late in this period, the 1GR-FE V6 engine received a modification to allow for an improved head gasket design which resolved a common head gasket failure.
  • In 2006 (for the 2007 model year), the 4Runner remained unchanged.
Facelifted 4Runner Sport Edition 4WD (US)
  • In 2007 (for the 2008 model year), the 4Runner received standard rollover sensing side curtain airbags and front row side torso airbags, a switch to disable Vehicle Stability Control, slightly modified front grille design, refinements in the tire-pressure monitoring system, and some changes in the seat belt warning system and brake system control. An Urban Runner Package was also available on the Sport Edition V6 4x4, which added an in dash Tom Tom navigation system, Alcantara inserts in both the front and back seats with dark leather bolstering, the 18" Limited style wheels, a color-keyed front grill and a double-decker cargo system.
  • In 2008 (for the 2009 model year), the 4Runner remained unchanged. A Trail Edition package offered an electronic locking rear differential, a switch to enable/disable Advanced Traction Control (A-TRAC) and Bilstein dampers.

Later models offered a DVD Rear Seat Entertainment System (RSES) which used a nine-inch LCD screen and two wireless headphones.

Fifth generation (N280; 2009)

Fifth generation
2010 Toyota 4Runner SR5 -- NHTSA 2.jpg
Overview
ProductionAugust 2009 – present
Model years2010–present (US)
AssemblyJapan: Tahara, Aichi (Tahara plant)[53]
Designer
  • Ken Iwasaki and Tom Matsumoto[54]
  • Eishi Suzuki (2014 facelift)[55]
Body and chassis
ClassMid-size SUV
Body style5-door SUV
Related
Powertrain
Engine
  • Gasoline:
  • 2.7 L 2TR-FE I4 (TRN280; 2009–2010)
  • 4.0 L 1GR-FE V6 (GRN280/285; 2009–present)
Transmission
  • 4-speed automatic (2.7 L)
  • 5-speed automatic (4.0 L)
Dimensions
Wheelbase109.8 in (2,790 mm)
Length189.9–191.3 in (4,825–4,860 mm)
Width75.8 in (1,925 mm)
Height70.7 in (1,795 mm)
|uk|Kerb|Curb}} weight4,400–4,805 lb (1,995–2,180 kg)

The fifth-generation 4Runner was unveiled at the State Fair of Texas on September 24, 2009, and went on sale months later. It is built on the same platform as the J150 series Land Cruiser Prado/Lexus GX and the FJ Cruiser.[56] Despite being built in Japan, it was only produced in left-hand drive and it was not sold there or any other RHD markets.

Initially, the 4Runner was available in three trim levels, two of which were available previously. The base SR5 trim as well as the top-of-the-line Limited trim are available as a 2WD or a 4WD. The Trail Edition is only available as a 4WD. The SR5 and Trail Edition 4WDs received a part-time 4WD drive system, while the Limited has full-time 4WD. All models came with Active Traction Control (A-TRAC).[57] The new Trail Edition offers Toyota's Kinetic Dynamic Suspension System (KDSS) and Crawl Control which had previously only been available to premium Toyota vehicles, as well as a rear locking differential like the previous Trail Package.

The 4.0-liter V6 gasoline engine adds Dual VVT-i which improves horsepower, torque and fuel economy, and comes standard in all models. A 2.7-liter I4 was available on 2WD models, but was discontinued after the 2010 model year. The 4.7-liter V8 from the previous generation was not carried over to the fifth generation 4Runner.[58]

Model year changes

In 2013 (for the 2014 model year), the 4Runner received a facelift, consisting of revised front and rear fascia with projector headlamps and clear-lensed, LED tail-lamps, as well as other minor exterior cosmetic changes. The interior was also updated, with soft-touch door trim, leather-wrapped steering wheel and shift knob, revised dashboard and center stack, and the inclusion of Toyota's Optitron instrument cluster as standard across all trim levels. Brake lines were upgraded for improved pedal feel, and electronic Trailer Sway Control programming included. No driveline changes were made. All 2014 model year 4Runner models are powered by a 4.0-liter V-6 engine with intelligent Variable Valve Timing (VVT-i) that can develop 201 kW (270 bhp) and 377 N⋅m (278 ft⋅lb) of torque. It is mated to a five-speed automatic ECT transmission.[59]

In 2014 (for the 2015 model year), the TRD Pro trim level was introduced in the United States, with Toyota badging on the front as well as an off-road package as part of the TRD Pro Series. The TRD Pro 4Runner included TRD Bilstein shocks with remote reservoirs, TRD-tuned front springs and TRD front skid plate.[60] For each model year of the TRD Pro, beyond the two colors available on all trims, the TRD Pro is available in an exclusive color. This was 'Inferno Orange' for the 2015 model year,[61] 'Quicksand' for 2016, 'Cement' for 2017, 'Cavalry Blue' for 2018, 'Voodoo Blue' for 2019, 'Army Green' for 2020, 'Lunar Rock' for 2021, 'Lime Rush' for 2022, 'Solar Octane' for 2023, and 'Terra' for 2024. All United States models received the Entune touchscreen infotainment system with a 6.1-inch display and a rear backup camera as standard equipment, with optional GPS navigation, SiriusXM Satellite Radio, HD Radio, and Safety Connect. Only the Limited model featured a standard JBL premium amplified audio system.[citation needed]

In 2016 (for the 2017 model year), the 4Runner Trail and Trail Premium were renamed to TRD Off-Road and TRD Off-Road Premium in the United States. These trim levels shared the same mechanical functionality of the former Trail edition, but added aesthetic differences and TRD badging to differentiate themselves from the base model. They did not share the same suspension as the TRD Pro model.[62]

In 2018 (for the 2019 model year), Toyota began offering a 'Nightshade' package based on the Limited trim which blacks out badging, lower front and rear fascia, wheels, and portions of the interior.[63]

In 2019 (for the 2020 model year), Toyota announced that all 4Runner trims would receive Toyota Safety Sense-P (TSS-P) standard as well as two additional rear seat USB ports. The TRD Pro was to have an updated grille design to accommodate the front radar sensor for TSS-P.[64] All United States models received an updated Entune 3.0 infotainment system with a larger, higher-resolution touchscreen display, Apple CarPlay and Android Auto smartphone integration and Amazon Alexa integration, 4G LTE internet access powered by Verizon Wireless, Safety Connect, and standard SiriusXM Satellite Radio and optional HD Radio. The TRD Pro model received a JBL premium amplified audio system as standard equipment. The system was previously only available on Limited models, where it remained standard equipment. Most models also featured standard GPS navigation.[citation needed]

In 2021 (for the 2022 model year), Toyota included their smart key system with push button as standard for all trims. The new TRD Sport trim was also added into the lineup. The TRD Sport received the same bumper, 20" wheels and the X-REAS suspension from the Limited. It also includes TRD parts such as the TRD shifter, TRD hood with scoop, TRD badges, and Softex seats with TRD lettering. Unlike the Limited, it is available only with 2WD or part-time 4WD. Toyota added LED foglights, lowbeams and highbeam headlights as standard for all trims for the first time. Blind spot monitor and rear cross traffic alert were added as standard for most trims. The TRD Pro now gets standard multi-terrain monitor. Using strategically placed cameras, the system lets the driver check surroundings on the trail, with the ability to spot potential obstacles not easily seen from the cabin. The Limited trim adds a standard Panoramic View Monitor, which is similar to the multi-terrain monitor on the TRD Pro. The Limited grade and TRD models also add a premium Multi-Information Display. All trims receives rear occupancy alert as standard. Lime Rush is the new exclusive paint for the 2022 model year TRD Pro.[65]

In 2022 (for the 2023 model year), the 40th Anniversary Special Edition is a limited model for the North American market producing 4,040 units, with three exterior colors, and standard four-wheel-drive. Solar Octane paint is exclusive to the 2023 model year TRD Pro.[66] Additionally, a heated steering wheel was introduced as standard equipment on the TRD Pro, 40th Anniversary Special Edition, TRD Off-Road Premium, and as optional equipment on the SR5, the SR5 Premium, the TRD Off-Road, and the Limited (with leather only). The heated steering wheel is not an available option on the TRD Sport.[67]

In 2023 (for the 2024 model year), Terra paint (an orange-brown color) is the exclusive color for TRD Pro while Solar Octane carries over to TRD Sport and Off Road Premium trims only.[68]


  • Toyota 4Runner SR5, rear view

  • (Facelift) 2014 4Runner Limited (GRN280L)

  • (Facelift) 2019 4Runner SR5 (GRN280L)

  • (Facelift) 2019 4Runner SR5 (GRN280L)

  • (Facelift) 2020 4Runner TRD Pro

  • (Facelift) 2022 Toyota 4Runner TRD Pro in Lime Rush, rear view

Safety

2015 Toyota 4Runner on IIHS:[69]
Category Rating
Moderate overlap frontal offset Good
Small overlap frontal offset (2014–present) Marginal1
Side impact Good
Roof strength Good2
1 vehicle structure rated "Poor"
2 strength-to-weight ratio: 4.11

Sales

Calendar year US
1984 6,498
1985 5,495
1986 5,564
1987 3,635
1988 20,880
1989 36,927
1990 48,295
1991 44,879
1992 39,917
1993 46,652
1994 74,109
1995 75,962
1996 99,597
1997 128,496
1998 118,484
1999 124,221
2000 111,797[70]
2001 90,250[70]
2002 77,026[71]
2003 109,308
2004 114,212
2005 103,830
2006 103,086[72]
2007 87,718[73]
2008 47,878
2009 19,675[74]
2010 46,531[74]
2011 44,316[75]
2012 48,755[75]
2013 51,625[76]
2014 76,906[77]
2015 97,034[78]
2016 111,970[79]
2017 128,296[80]
2018 139,694[81]
2019 131,864[82]
2020 129,052[83]
2021 144,696[84]
2022 121,023[85]

References

  1. ↑ "Toyota 4Runner History 1984". https://www.top4runners.com/runhist/runhist11984.html.
  2. ↑ Blackley, Julie (2019-03-03). "Longest Lasting Cars to Reach 200,000 Miles – 2019 Study Shows Full-Size SUVS Dominate". iSeeCars.com. https://www.iseecars.com/longest-lasting-cars-2019-study.
  3. ↑ 3.0 3.1 3.2 3.3 3.4 3.5 3.6 "What do you get when you cross a Toyota with a Winnebago? (brochure)". Winnebago. 1981. http://importarchive.com/brochure/toyotatrekker1981_01.
  4. ↑ Martin, Taylor (November 6, 2021). "Check out the Original Toyota Chinook Rv That Inspired the Tacozilla Camper". Motor Biscuit. https://www.motorbiscuit.com/original-toyota-chinook-rv-inspired-tacozilla-camper/.
  5. ↑ Hurlin, Tara (March 19, 2023). "Find of the Day: Go Off-Road in a Retro 1978 Toyota Chinook RV Camper". Hemmings. https://www.hemmings.com/stories/find-of-the-day-off-road-retro-1978-toyota-chinook-camper/.
  6. ↑ Forrest, Suse (April 17, 2020). "The Forgotten Toyota Trekker Gave Birth to the 4Runner". Motor Biscuit. https://www.hemmings.com/stories/find-of-the-day-off-road-retro-1978-toyota-chinook-camper/.
  7. ↑ O'Neill, Chris (August 7, 2018). "These Third-Party Toyota Pickup Conversions Led to the Toyota 4Runner". Autotrader. https://www.autotrader.com/car-news/these-third-party-toyota-pickup-conversions-led-toyota-4runner-281474979871931.
  8. ↑ "History". 2010-07-01. http://toyotatrekker.com/History.htm.
  9. ↑ Saunders, David (2014-06-22). "Cars of a Lifetime: 1989 Toyota Hilux SURF (4Runner) – A Walk On The Right-Hand Drive Side". Curbside Classics. http://www.curbsideclassic.com/cars-of-a-lifetime/cars-of-a-lifetime-1989-toyota-hilux-surf-4runner-a-walk-on-the-right-hand-drive-side/.
  10. ↑ "Toyota Trekker: The Retro Pickup/SUV Hybrid Everyone Forgot About". https://parts.olathetoyota.com/blog/forgotten-toyota-trekker.
  11. ↑ 11.0 11.1 "Toyota Trekker". https://www.toyotaoffroad.com/Articles/Toyota/Trekker/Trekker.htm.
  12. ↑ 12.0 12.1 12.2 12.3 DeLoach, Dick (November 1981). "Look — Up On The Hill! It's A Bronco, It's A Blazer, No — It's A ... Trekker". Truckin': 53;72. https://toyotatrekker.com/new_page_1.htm.
  13. ↑ "75 Years of Toyota | Vehicle Lineage". Toyota. 2012. http://www.toyota-global.com/company/history_of_toyota/75years/vehicle_lineage/family_tree/index.html.
  14. ↑ 14.0 14.1 Hartford, Bill (June 1984). "Imports & Motorsports: Toyota 4Runner". Popular Mechanics: 10. https://books.google.com/books?id=HeMDAAAAMBAJ&pg=PA10. Retrieved 9 June 2023. "Toyota took the 103-in.-wheelbase pickup, cut out the back of the cab, built in a rollbar (note the wide B-pillar) and then bolted on the plastic cap. The handsome cap is equipped with a convenient electric tailgate window.".
  15. ↑ Taylor, Rich (October 1984). "The Best of the Ski Cars". Skiing: 154–156. https://books.google.com/books?id=LPHSiTlfwhwC&pg=PA154. Retrieved 9 June 2023. "The 4Runner is basically the best-selling Toyota pickup truck fitted with a removable cap over the bed, a backless cab, and seats for five. The top unbolts and lifts off, bringing a whole new dimension to these already useful vehicles.".
  16. ↑ Dunne, Jim (September 1987). "'88 Sport Utility Buyer's Guide". Popular Mechanics: 84–89. https://books.google.com/books?id=zeQDAAAAMBAJ&pg=PA84. Retrieved 9 June 2023.
  17. ↑ Henry, Ed; Miller, Sherri (April 1988). "Utility Vehicles: Suburban Chic". Changing Times: 29–35. https://books.google.com/books?id=QQUEAAAAMBAJ&pg=PA29. Retrieved 9 June 2023.
  18. ↑ 18.0 18.1 Knepper, Mike (December 1984). "Ski Vehicles III: The Invulnerables". Ski: 201–207. https://books.google.com/books?id=rkVOrjOc8SAC&pg=PT14. Retrieved 8 June 2023.
  19. ↑ 19.0 19.1 19.2 Kilpatrick, Bill (May 1985). "Toyota's New 4x4". Field & Stream: 133. https://books.google.com/books?id=0a4NsCDrEUwC&pg=PA133. Retrieved 8 June 2023.
  20. ↑ 20.0 20.1 20.2 Peek, Jeff (5 September 2019). "The rise of 1984–89 Toyota 4Runners can't be ignored". Hagerty. https://www.hagerty.com/media/car-profiles/rise-of-1984-89-toyota-4runners/.
  21. ↑ 21.0 21.1 "Toyota Cars & Trucks (full-line brochure)". Toyota Motor Sales U.S.A., Inc.. February 1986. https://xr793.com/wp-content/uploads/2020/03/1986-Toyota-Full-Line.pdf.
  22. ↑ 22.0 22.1 22.2 "PM Comparison Test: Off-Road Warriors". Popular Mechanics: 74–78;114. September 1986. https://books.google.com/books?id=zuMDAAAAMBAJ&pg=PA74.
  23. ↑ Toyota trucks, 1970–88 Repair Manual. Radnor, Pennsylvania: Chilton Book Company. 1994. ISBN 0-8019-8578-1. https://archive.org/details/chiltonstoyotatr0000unse/.
  24. ↑ Hartford, Bill (February 1987). "Imports: Sports/Utility Stampede". Popular Mechanics. https://books.google.com/books?id=Y-QDAAAAMBAJ&pg=PA12. Retrieved 8 June 2023.
  25. ↑ Lamm, John (October 1987). "The Snow-Goers: 19 for the road". Ski: 156–160;164–165. https://books.google.com/books?id=r6yPifx07tUC&pg=RA1-PA156. Retrieved 9 June 2023.
  26. ↑ Lamm, John (December 1988). "Put Yourself In Traction". Ski: 146–160. https://books.google.com/books?id=1c06NbG5Fb0C&pg=RA1-PA146. Retrieved 8 June 2023.
  27. ↑ Taylor, Rich; Millen, Rod; Hussey, Ron (photographer) (March 1989). "Sport/Utility: Dirt Rods". Popular Mechanics: 113–120. https://books.google.com/books?id=AeQDAAAAMBAJ&pg=PA113. Retrieved 9 June 2023. "Even though Toyota's Pickup is all-new for 1989, the 4Runner is still built off the previous Pickup chassis/body, though a mid-'89 update is due.".
  28. ↑ McCosh, Dan (July 1989). "Automotive Newsfront: Split-personality 4×4". Popular Science: 17–24. https://books.google.com/books?id=uQAAAAAAMBAJ&pg=PA26. Retrieved 9 June 2023. "On the road the 4Runner is well poised with a quiet and comfortable ride. Coil springs smoothly soak up most road irregularities, such as potholes and expansion joints, making for a ride that is admirable for a truck. But off-road is another story. With over nine inches of ground clearance, the 4Runner is competent at bouncing through rutted trails, snow, and mud. But when the going gets tough, the suspension feels mushy, and the body tends to roll too much.".
  29. ↑ Kaho, Todd (November–December 1989). "New for the '90s". Water Ski: 30–42. https://books.google.com/books?id=_rt2YqVFATEC&pg=RA1-PA42. Retrieved 9 June 2023. "Designated an early '90 model, the four-door 4Runner features smooth, rounded, aerodynamic styling—gone is the "pick-up with a shell" look of previous 4Runners. The Toyota is available in both two- and four-door models; the two-door has a "C" pillar raked at a 45-degree angle, enhancing its already aggressive look.".
  30. ↑ 30.0 30.1 LaRocque, Tom (July–August 1992). "Forays in 4Runners". Snow Country: 108–109. https://books.google.com/books?id=DUTKIteyvkwC&pg=PA108. Retrieved 9 June 2023.
  31. ↑ Taylor, Rich; Hussey, Ron (photographer) (August 1990). "Comparison Test: Suburban Chic". Popular Mechanics: 55–59;109. https://books.google.com/books?id=J-QDAAAAMBAJ&pg=PA55. Retrieved 9 June 2023.
  32. ↑ Büschi, Hans U., ed (March 1991). Automobil Revue 1991. 86. Berne, Switzerland: Hallwag AG. pp. 587–588. ISBN 3-444-00514-8.
  33. ↑ "1990 Toyota 4Runner 4 DR". United States Department of Transportation. https://www.nhtsa.gov/vehicle/1990/TOYOTA/4RUNNER/4%252520DR.
  34. ↑ "1991 Toyota 4Runner 4 DR". United States Department of Transportation. https://www.nhtsa.gov/vehicle/1991/TOYOTA/4RUNNER/4%252520DR.
  35. ↑ "1995 Toyota 4Runner 4 DR". United States Department of Transportation. https://www.nhtsa.gov/vehicle/1995/TOYOTA/4RUNNER/4%252520DR.
  36. ↑ "1990 Cars: wagons, minivans, utilities, pickups". Changing Times: 57–63. December 1989. https://books.google.com/books?id=KAQEAAAAMBAJ&pg=PA60. Retrieved 9 June 2023.
  37. ↑ "1991 Cars: wagons, minivans, utilities, pickups". Kiplinger's Personal Finance: 57–61. December 1990. https://books.google.com/books?id=tAMEAAAAMBAJ&pg=PA60. Retrieved 9 June 2023.
  38. ↑ "1992 Cars: wagons, minivans, utility vehicles, pickups". Kiplinger's Personal Finance: 71–75. December 1991. https://books.google.com/books?id=WgQEAAAAMBAJ&pg=PA74. Retrieved 9 June 2023.
  39. ↑ "1993 Cars: wagons, minivans, utility vehicles, pickups". Kiplinger's Personal Finance: 78–83. December 1992. https://books.google.com/books?id=0wMEAAAAMBAJ&pg=PA82. Retrieved 9 June 2023.
  40. ↑ "1994 Cars: wagons, minivans, utility vehicles & pickups". Kiplinger's Personal Finance: 87–91. December 1993. https://books.google.com/books?id=BwUEAAAAMBAJ&pg=PA90. Retrieved 9 June 2023.
  41. ↑ "1995 Cars: sport utility vehicles". Kiplinger's Personal Finance: 88–89. December 1994. https://books.google.com/books?id=3P4DAAAAMBAJ&pg=PA88. Retrieved 9 June 2023.
  42. ↑ Sherman, Don (August 1994). "Peak Performance | Pike's Peak: if you can tow it there, you can tow it anywhere!". Boating: 94–100. https://books.google.com/books?id=5sT2dfd6FoIC&pg=RA1-PA94. Retrieved 9 June 2023.
  43. ↑ 43.0 43.1 43.2 43.3 43.4 "75 Years of TOYOTA | Hilux Surf". Toyota. 2012. https://www.toyota-global.com/company/history_of_toyota/75years/vehicle_lineage/car/id60011420/index.html.
  44. ↑ "New 4runner As Rugged As Ever". Orlando Sentinel (US). 1995-12-28. http://articles.orlandosentinel.com/1995-12-28/topic/9512270053_1_4runner-parts-new-4runner-toyota.
  45. ↑ Roca, Carrie. "2003 Toyota 4Runner". Autoweek.com. http://www.autoweek.com/apps/pbcs.dll/article?AID=/20021002/FREE/210020701&SearchID=73279359752099.
  46. ↑ "IIHS-HLDI: Toyota 4Runner". Iihs.org. http://www.iihs.org/iihs/ratings/vehicle/v/toyota/4runner-4-door-suv/2009.
  47. ↑ "Status Report, Vol. 42, No. 4, April 19, 2007". http://www.iihs.org/externaldata/srdata/docs/sr4204.pdf.
  48. ↑ "2003 Toyota 4Runner 4 DR". US: NHTSA. https://www.nhtsa.gov/vehicle/2003/TOYOTA/4RUNNER/4%252520DR.
  49. ↑ "Toyota 4Runner Road Test". Familycar.com. http://www.familycar.com/roadtests/Toyota4Runner/.
  50. ↑ "First Drive: 2003 Toyota 4Runner". CanadianDriver. 2002-09-30. http://www.canadiandriver.com/2002/09/30/first-drive-2003-toyota-4runner.htm.
  51. ↑ "Full Test: 2003 Toyota 4Runner Limited". Edmunds.com. 2003-01-03. http://www.edmunds.com/insideline/do/Drives/FullTests/articleId=83156.
  52. ↑ "First Drive: 2003 Toyota 4Runner". Edmunds.com. 2002-09-16. http://www.edmunds.com/insideline/do/Drives/FirstDrives/articleId=74756.
  53. ↑ "Japanese Production Sites". Toyota. 2015-03-06. http://newsroom.toyota.co.jp/en/corporate/companyinformation/manufacturing.
  54. ↑ Iwasaki, Ken & Tom Matsumoto, "Automobile and toy replica thereof", US patent D605559, published 2009-12-08, assigned to Toyota Motor Co. Ltd.
  55. ↑ Suzuki, Eishi, "Automobile and/or toy replica thereof", US patent D710253, published 2014-08-05, assigned to Toyota Motor Co. Ltd.
  56. ↑ "2012 Toyota 4Runner". TechXreview.com. http://www.techxreview.com/2012/06/toyota-4runner-review-specifications.html.
  57. ↑ "ebrochure for US 2010 model year" (PDF). 2009. http://www.toyota.com/byt/pub/buildGeneralEbrochure.do?modelYear=2010&seriesCode=86&cabTypeName=&lang=en&brochureType=general.
  58. ↑ "2010 Toyota 4Runner Officially Revealed [Video]". Worldcarfans.com. http://www.worldcarfans.com/109092522001/2010-toyota-4runner-officially-revealed-video.
  59. ↑ "2014 Toyota 4Runner Review". 2015carreviews.com. 2014-03-14. http://2015carreviews.com/2014-toyota-4runner-review-price/.
  60. ↑ Sandhu, Bobby (2014-02-20). "Toyota 4Runner TRD Pro Series 2015". thecarwallpapers.com. http://www.thecarwallpapers.com/toyota-4runner-trd-pro-series-2015.
  61. ↑ "2015 Toyota 4Runner Product Information" (Press release). US: Toyota. 2014-12-02. Retrieved 2017-01-06.
  62. ↑ "Making the Grade: 2017 4Runner TRD Off-Road Joins TRD Line-Up" (Press release). US: Toyota. 2016-07-21. Retrieved 2016-08-16.
  63. ↑ "2019 Toyota 4Runner Strengthens Legacy in 35th Year" (Press release). US: Toyota. 2018-10-17. Retrieved 2019-02-08.
  64. ↑ "2020 Toyota Sequoia TRD Pro Opens Path to Family Adventures, Leads Charge for Updates on all TRD Pro Models" (Press release). US: Toyota. 2019-02-07. Retrieved 2019-02-08.
  65. ↑ "2022 Toyota 4Runner Adds New TRD Sport Model, New Standard Safety Features" (Press release). US: Toyota. 2021-09-01. Retrieved 2021-09-01.
  66. ↑ "Toyota 4Runner Celebrates Historic Run with 40th Anniversary Special Edition" (Press release). US: Toyota. 2022-05-24. Retrieved 2022-06-11.
  67. ↑ "2023 4Runner". US: Toyota. https://www.toyota.com/content/dam/toyota/brochures/pdf/2023/4runner_ebrochure.pdf.
  68. ↑ Krok, Andrew (October 3, 2023). "2024 Toyota 4Runner Soldiers On with New Paint Color". Car and Driver (Hearst Communications). https://www.caranddriver.com/news/a45434120/2024-toyota-4runner-debut/. Retrieved December 20, 2023.
  69. ↑ "2015 Toyota 4Runner Midsize SUV". IIHS. http://www.iihs.org/iihs/ratings/vehicle/v/toyota/4runner-4-door-suv?print-view.
  70. ↑ 70.0 70.1 "Toyota Sets Sales Record for Sixth Year in a Row". Theautochannel.com. http://www.theautochannel.com/news/2002/01/03/034042.html.
  71. ↑ "Toyota Announces Best Sales Year in Its 46-Year History, Breaks Sales Record for Eighth Year in a Row". Theautochannel.com. http://www.theautochannel.com/news/2004/01/05/175869.html.
  72. ↑ "Toyota Sales December 2007" (Press release). USA: Toyota. Archived from the original on 2019-01-05. Retrieved 2017-05-16.
  73. ↑ "Toyota Sales December 2007" (Press release). USA: Toyota. Archived from the original on 2019-01-05. Retrieved 2017-05-16.
  74. ↑ 74.0 74.1 "Toyota Sales December 2010" (PDF) (Press release). USA: Toyota. Archived from the original (PDF) on 2012-09-05. Retrieved 2013-01-01.
  75. ↑ 75.0 75.1 "December 2012 and Year-End Sales Chart" (Press release). USA: Toyota. 2013-01-03. Archived from the original on 2013-01-06. Retrieved 2013-01-04.
  76. ↑ "December 2013 and Year-End Sales Chart" (Press release). USA: Toyota. 2014-01-03. Archived from the original on 2014-01-08. Retrieved 2014-01-09.
  77. ↑ "December 2014 and Year-End Sales Chart" (Press release). USA: Toyota. 2015-01-05. Archived from the original on 2015-01-07. Retrieved 2015-01-06.
  78. ↑ "December 2015 and Year-End Sales Chart" (Press release). USA: Toyota. 2016-01-05. Archived from the original on 2016-01-18. Retrieved 2016-01-18.
  79. ↑ "December 2016 and Year-End Sales Chart" (Press release). USA: Toyota. 2017-01-05. Retrieved 2017-01-05.
  80. ↑ "December 2017 Sales Chart" (Press release). USA: Toyota. 2018-01-03. Archived from the original on 2018-07-18. Retrieved 2018-02-10.
  81. ↑ "Toyota Motor North America Reports December 2018, Year-End Sales" (Press release). USA: Toyota. 2019-01-03. Archived from the original on 2019-02-04. Retrieved 2019-01-04.
  82. ↑ "Toyota Motor North America Reports December 2019, Year-End Sales" (Press release). USA: Toyota. 2020-01-03.
  83. ↑ "Toyota Motor North America Reports December 2020, Year-End Sales" (Press release). USA: Toyota. 2021-01-05.
  84. ↑ "Toyota Motor North America Reports December 2021, Year-End Sales" (Press release). USA: Toyota. 2022-01-04.
  85. ↑ "Toyota Motor North America Reports Year-End 2022 U.S. Sales Results". Toyota. 2023-01-04. https://pressroom.toyota.com/toyota-motor-north-america-reports-year-end-2022-u-s-sales-results/.

External links

  • (US)
Toyota road light truck/SUV/crossover timeline, international markets, 1985–present
See also: Car · Van/minivan
Type 1980s 1990s 2000s 2010s 2020s
Calendar year 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0
Mini SUV/ subcompact crossover Cami J100 Rush J200 Raize A200
Urban Cruiser
ist XP60 ist/Urban Cruiser XP110 Yaris Cross XP210
Compact SUV/crossover Rush F700 Rush F800–850
C-HR/IZOA AX10
Voltz E130 Corolla Cross XG10
Blizzard LD20 RAV4 XA10 RAV4 XA20 RAV4/Vanguard XA30 RAV4 XA40 RAV4/Wildlander XA50
Harrier XU10 Harrier XU30 Harrier XU60 Harrier/Venza XU80
Mid-size SUV/crossover Venza AV10
Highlander/Kluger XU20 Highlander/Kluger XU40 Highlander/Kluger XU50 Highlander/Kluger XU70
FJ Cruiser XJ10
Hilux Surf/4Runner N60 Hilux Surf/4Runner N120–130 Hilux Sport Rider Fortuner/SW4 AN50–60 Fortuner/SW4 AN150–160
Hilux Surf/4Runner N180 Hilux Surf/4Runner N210 4Runner N280
Land Cruiser Light J70 Land Cruiser Prado J70 Land Cruiser Prado J90 Land Cruiser Prado J120 Land Cruiser Prado J150
Full-size SUV Land Cruiser J70
Land Cruiser J60 Land Cruiser J80 Land Cruiser J100 Land Cruiser J200
Sequoia XK30–40 Sequoia XK60
Mega Cruiser BXD20
Kei pickup truck Pixis Truck S500–510
Pickup truck LiteAce/TownAce truck M20 LiteAce/TownAce truck M30–40 LiteAce/TownAce truck S400
Stout RK110
Kijang F20 Kijang pickup F40 Kijang pickup F60
Hilux/Pickup N50–70 Hilux/Pickup N80–110 Hilux N140–170 Hilux AN10–30 Hilux AN120–130
Tacoma N140–190 Tacoma N220–270 Tacoma N300
Land Cruiser pickup J79
T100 XK10/XK20 Tundra XK30/XK40 Tundra XK50
5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0
1980s 1990s 2000s 2010s 2020s
Legend/Notes
  •      Non-Toyota platform



Retrieved from "https://handwiki.org/wiki/index.php?title=Engineering:Toyota_4Runner&oldid=3253834"
